Gabion Wall Zenturo

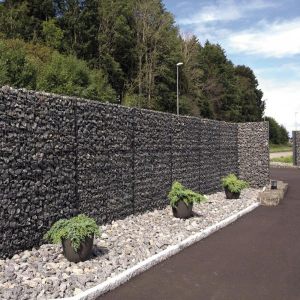

The Zenturo® gabion wall will give a modern look to your space. Be the co-designer of your fence!
Assets:
- Easy installation
- Quality
- Innovative design

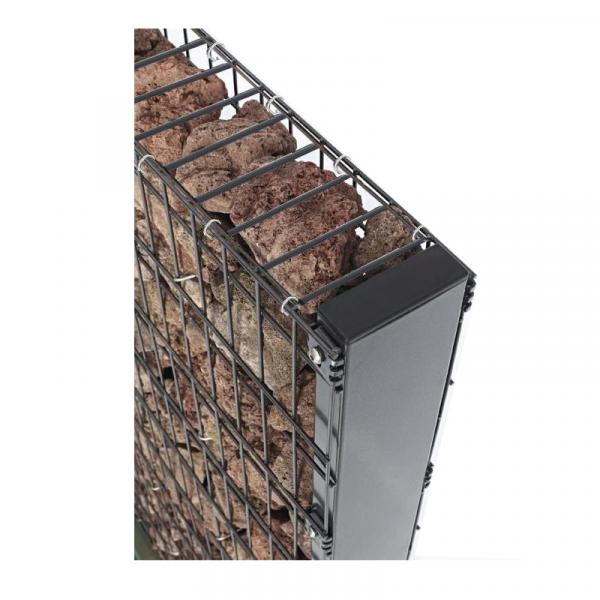

Your Zenturo privacy wall will be created with Zenturo Super panels, rectangular Zenturo posts, and specifics accessories. Zenturo Super panels have narrower meshes than Zenturo, making them ideally suited for gabion walls. In combination with the Zenturo post concept and associated spider fixators, a wide variety of infills can be used to create a personal aesthetic system.
ZENTURO SUPER PANEL SPECIFICATIONS
The Zenturo Super panels are flat panels with a double (2D) alternating horizontal wires for added strength.
The panels are 2005 mm wide.
Mesh sizes: 100 x 50 and 50 x 50 mm
Horizontal wire diameter: 5.00 mm
Vertical wire diameter: 4.15 mm

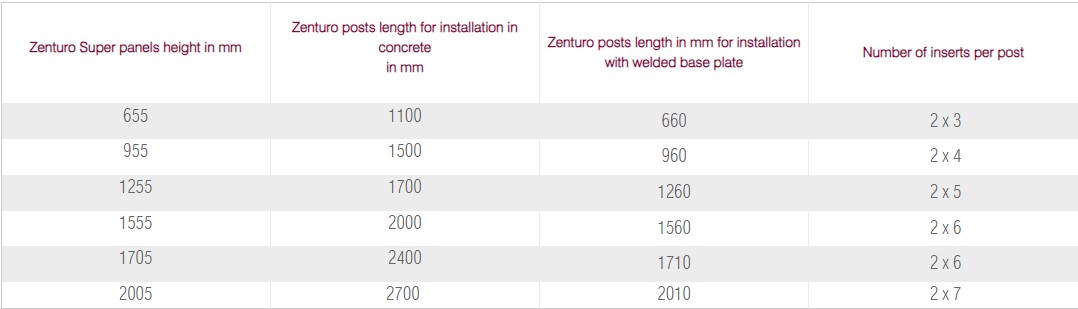

ZENTURO POST SPECIFICATIONS
The Zenturo Post is a rectangular tube with a cross-section of 120 x 40 mm and a plate thickness of 2.00 mm.
ACCESSORIES

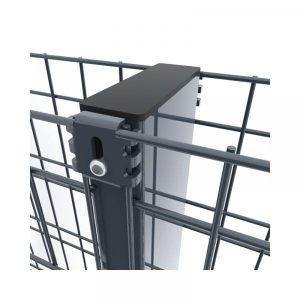

- Metal spider fixators, hot dip galvanized and polyester plastic coated, is fixed to the post using stainless steel security hexagonal bolts M6 x 40 and stainless steel washers M6 (included in the packaging).
- Plastic post cap, pre-installed on the post.

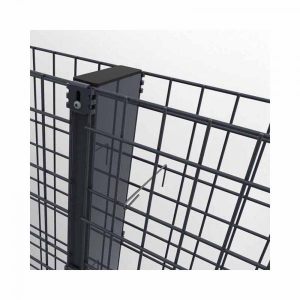

- Specific Zenturo distance holders to prevent the panels from bulging under the weight of the wall infill (wire Ø 2.9 mm).

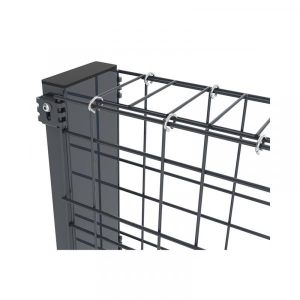

- Top Zenturo panel: a small panel (115x1900mm) which ends your wall on the top.
COATING TECHNIQUE AND COLORS
The panels are made of galvanized wire, and an adhesion layer is provided for perfect adhesion with the polyester top coat (min. 100 microns). The posts are internally and externally galvanized (min. layer thickness 275g/m², both sides combined) according to Euronorm 10326, after which an adhesion layer is applied and polyester plastic coated (min. 60 microns).
They are available in Anthracite BF7016M. Other colours on request.
INSTALLATION
A gabion wall blocks all wind!
To avoid damage and injury caused by accidents, always take the following precautions:
- Evaluate whether the project site is exposed to strong winds. A filled Zenturo® wall of 200 x 200 cm (= maximum panel size) installed with the new post system – withstands a frontal wind load of 120 km / h.
- Make sure the posts are anchored deep enough in the soil with concrete.
- Never exceed the maximum wall height: 200 cm.
- Strictly follow the instructions.
LIABILITY DISCLAIMER
Betafence's liability is limited to any damage for which and insofar as Betafence could be held liable in accordance with imperative legal stipulations. Direct or indirect damage (including consequential loss) and/or immaterial damage is / are excluded. Betafence is not liable for any damage caused during or as a result of the installation, or for any damage due to incorrect or incomplete installation. These products come with an installation guide that can also be found below on this page or on the Betafence Group Youtube Channel. These instructions must be strictly followed. If you do not have the necessary skills to install the products yourself, you are advised to ask a professional for assistance. The Zenturo Super system is part of the Betafence EU Guarantee policy.
